P&ID General Instrument Symbols
  • If the balloon is inside a square, the instrument is identified as a shared device.

This means that in addition to performing its specific function, the instrument displays or controls the process variable.

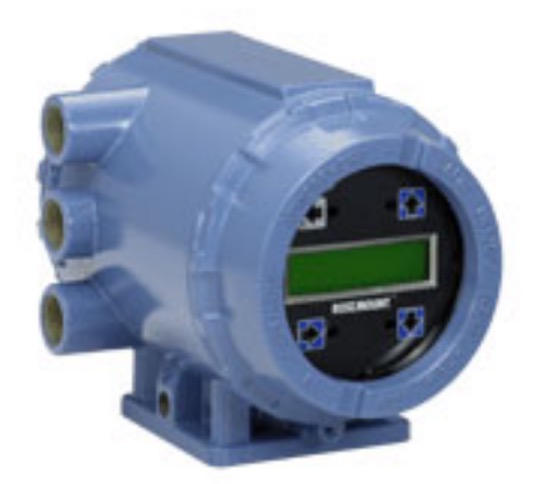

Flowmeter/Display
